To place a repeat open or repeat close make sure NtEd is in edit mode (see The 3 modes). Right click a measure line. The repeat dialog appears:
Choose one of the offered repeat types by clicking the up/down arrow and press Ok button. The appropriate measure changes its type:
If you select a closing repeat on repeat dialog the checkbox alternative1
is enabled. If you check it the checkbox alternative2
is enabled:

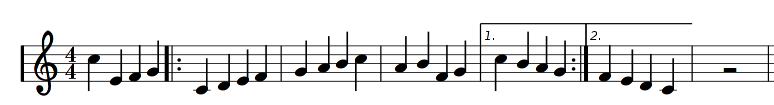

This way you can place the appropriate alternatives:
Both alternatives cover one measure at start. To change the alternative's width select 1.
or 2.

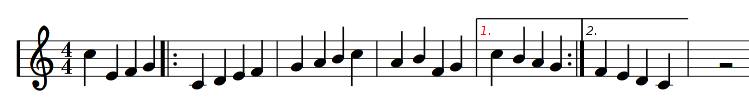

with left mouse click. The selected number appears red:
Change the alternative width by pressing the left/right cursor key:
To delete an alternative select the appropriate closing repeat and deselect the appropriate checkbox.
The same way you can insert an end bar:
If you choose the end bar or repeat close you can control by hide following
whether or not
NtEd draws elements following the end bar on the same system:
It is your responsibility to delete following systems or pages!
